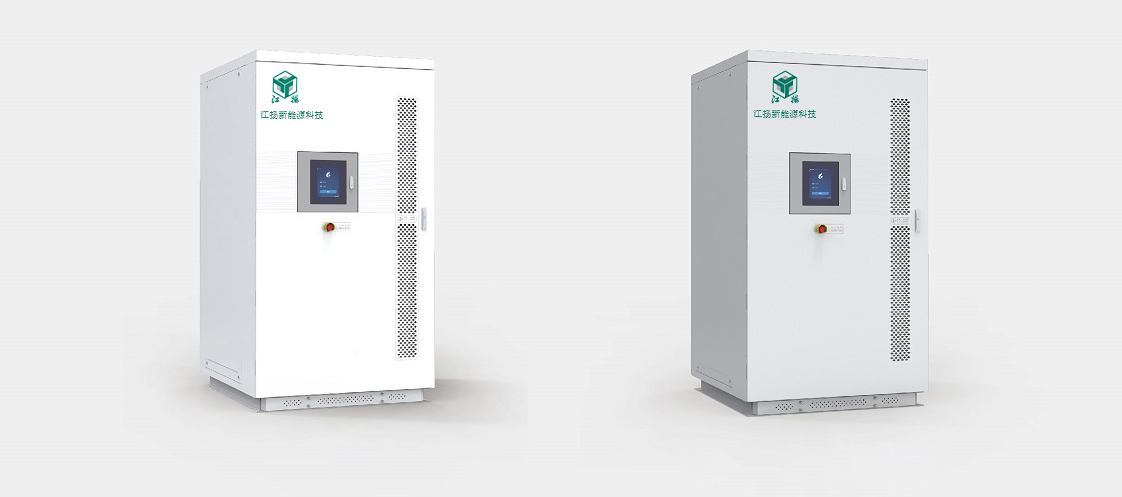

Outdoor liquid cooled lithium battery energy storage cabinet -260kWh
Product Name | JYXNY-MES260-115 |
Module Specificatio | LFP/314Ah/1P52S |
Battery System Configuration | 1P260S |
Rated Voltag | 832Vdc |
Maximum Charge/Discharge Rate | 0.5P@25℃ |
Voltage Rang | 715~936Vdc |
Dimensions (WDH) | 1450*1300*2150mm |
Weight | 3T |
Battery Capacity | 260kwh |
Operating Temperature Rang | -25~55℃（＞45℃ Derating） |
Operating Humidity | 0~95%(Non-condensing) |
Cooling Method | Intelligen Liquid Cooling |
Protection Grade | Entire Cabinet: IP55; Battery PACK: IP67 |
Corrosion Resistance Grade | C4 (C5 is optional as the highest grade) |
Communication Interfac | CAN/Ethernet/RS485 |
Altitude | 5000m (Derating above 2000m |
System Lifecycle | 6000 times（≤0.5P@25℃） |
